Wera Tool Testing Kit

Tool check plus 1/4" drive

Metric measurements

Ratchet kit with bits, sockets and holder, with tip section tilts out for easy access.

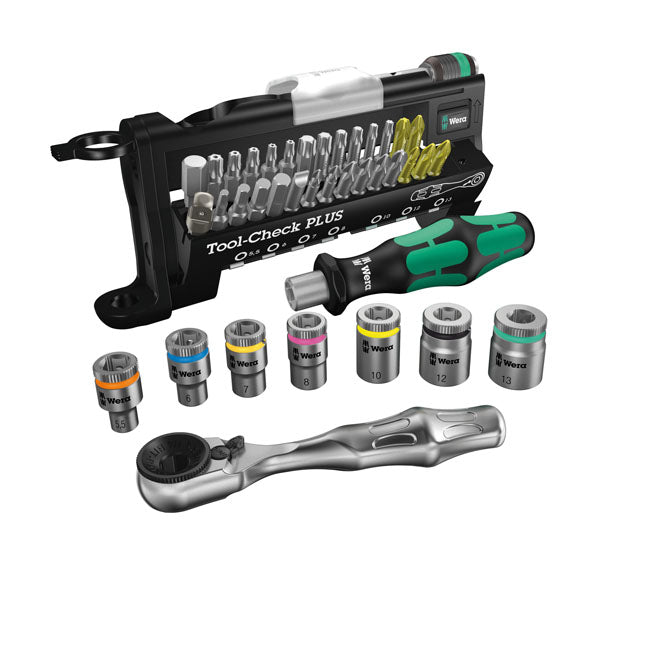

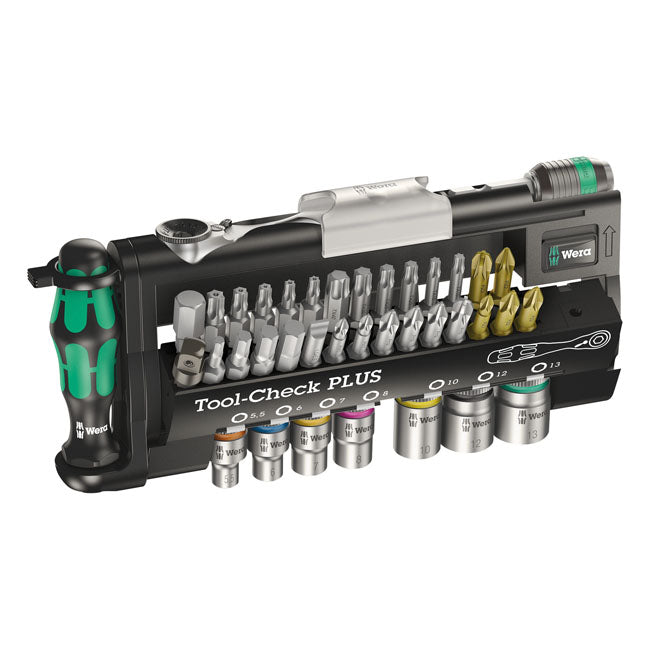

39-piece kit with 1/4" drive in metric sizes.

Includes a 1-point Zyklop Mini ratchet and a screwdriver handle with bit holder.

It accepts 1/4" hex bits and a special adapter that allows the use of standard 1/4" sockets, of which 7 are included, from 5.5 mm to 13 mm.

The sockets are chrome vanadium with a brushed chrome finish and are color-coded to quickly find the correct size.

Also included are 28 Phillips, Pozidriv, Torx®, safety pin (tamper-proof), slotted and hex head (Allen) bits.

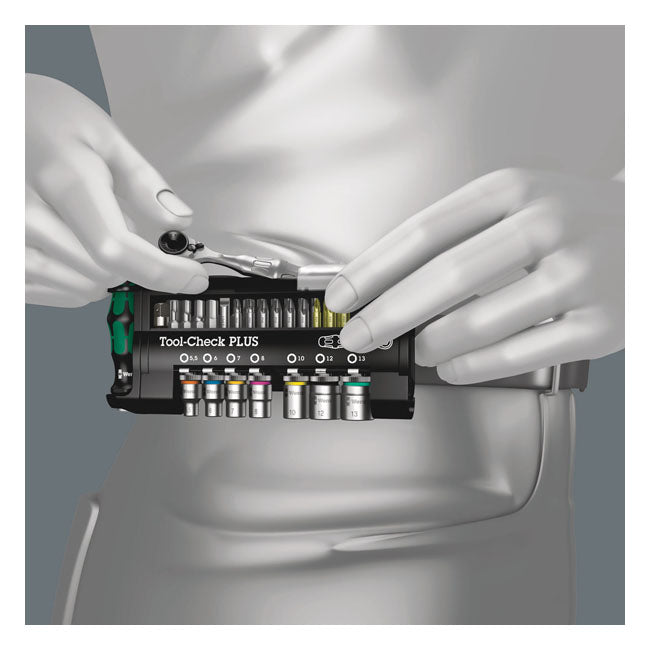

Everything comes in a small, sturdy plastic box.

8001 A -

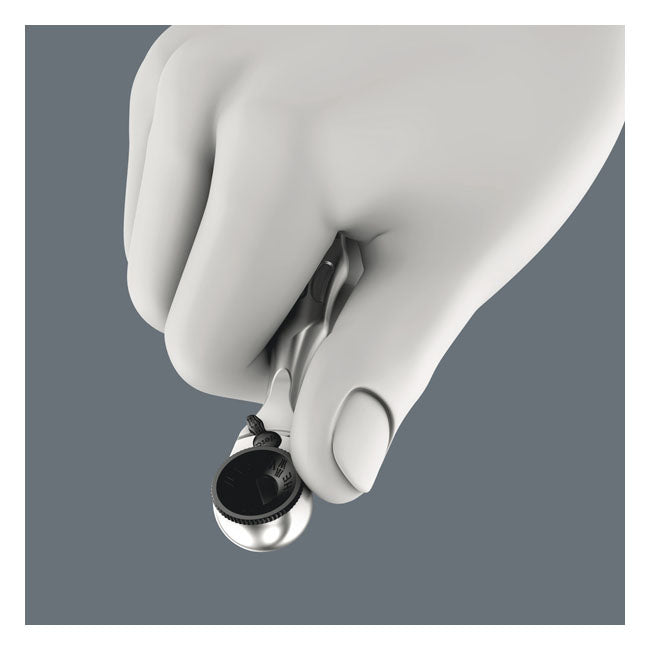

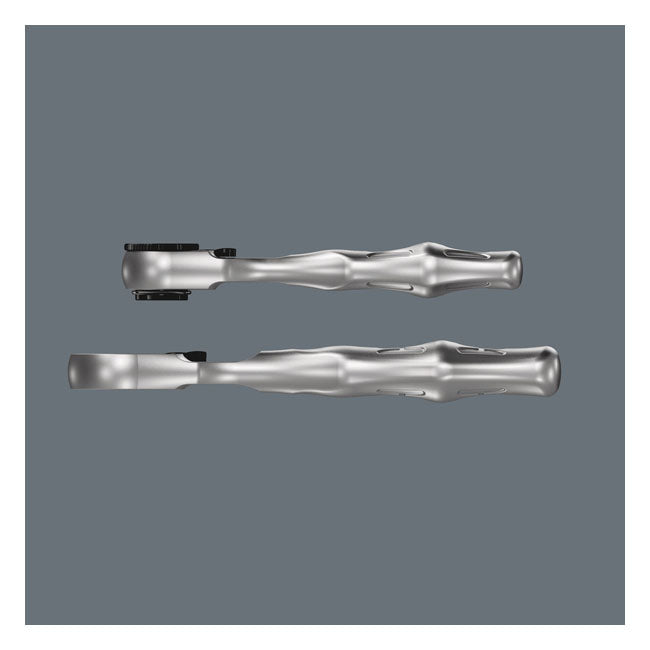

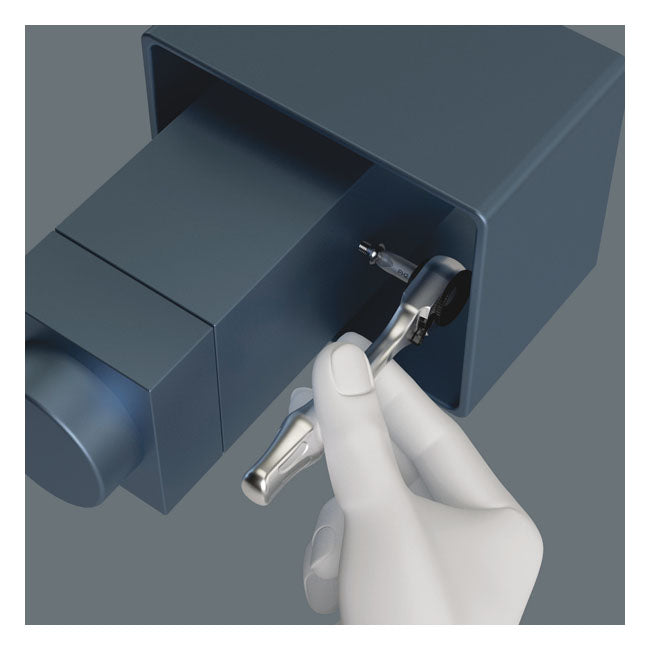

Zyklop Mini 1 ratchet with 1/4" drive and 87 mm length.

Drop-forged steel ratchet that accepts 1/4" hex bits according to DIN ISO 1173-C 6.3 and E 6.3, as well as Wera series 1 and 4.

With switch for ratchet direction and a return angle of 6°.

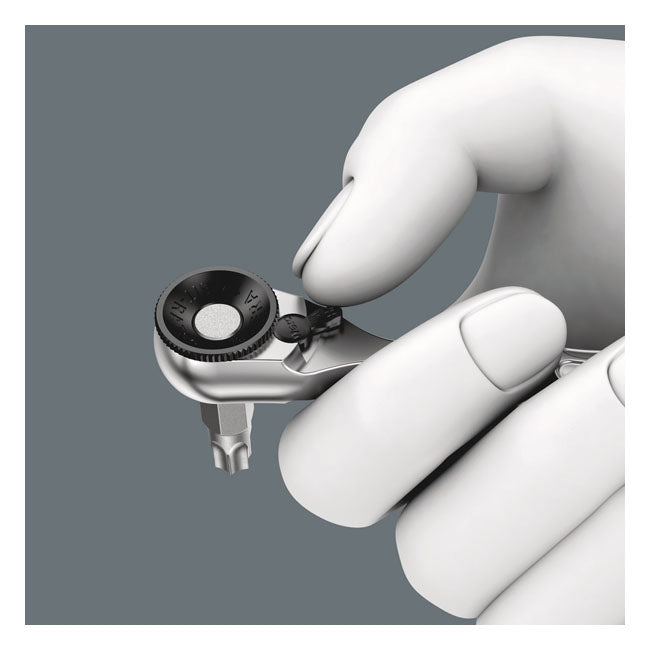

The thumbwheel allows for quick screwing, useful even in very tight spaces.

The ratchet can reach a torque of at least 65 Nm, which is higher than what could be achieved manually.

813

- Screwdriver handle with bit holder, 1/4" drive and 78 mm length.

Magnetic.

With multi-component Kraftform handle.

889/4/1 K

- Rapidaptor quick-release bit holder with 1/4" drive x 50 mm length.

Compatible with all 1/4" insert bits and longer power bits.

The bit holder mechanically holds the bits using a self-locking mechanism: simply press the bit and it will automatically adjust to the bit length.

It's magnetic.

By pulling the rubber end of the bit holder backwards, the bit is released.

The bit holder can be held in the hand for greater support during screwdriving, as the sleeve rotates freely.

870/1

- Adapter for 1/4" sockets.

Adapter compatible with the Mini 1 bit ratchet and allows the use of standard sockets with a 1/4" drive.

8790 HMA HF

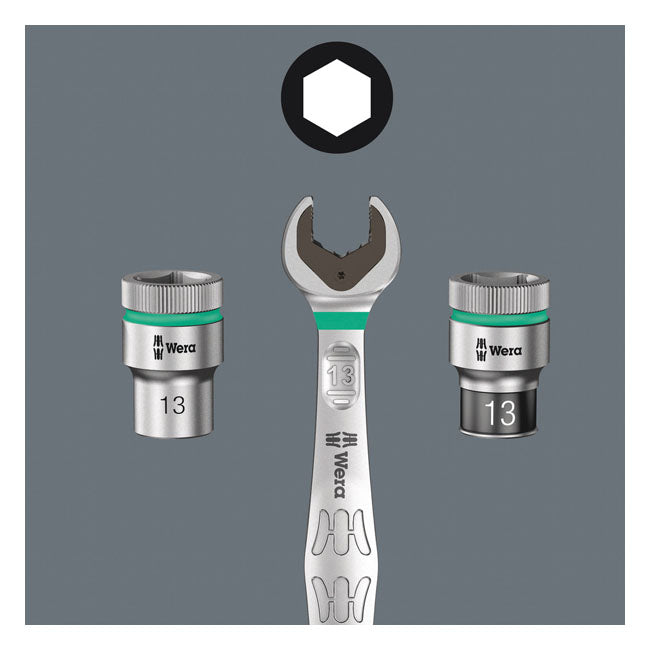

- 1/4" Zyklop sockets for hex bolts and nuts.

23 mm long.

With hold function and knurled base for manual turning.

With ball retaining ring.

Includes 5.5; 6; 7; 8; 10; 12; 13.

851/1 TZ PH

- 1/4" Phillips bits.

25 mm in length. Universal, resistant.

Includes 2 PH1, 3 PH2 and 1 PH3 tips.

855/1 TH PZ

- 1/4" Pozidriv bits.

Length 25 mm.

Universal, durable.

Includes 1 PZ1, 3 PZ2 and 1 PZ3.

867/1 TZ TORX®

- 1/4" Torx® bits.

Length 25 mm.

Universal, durable.

Includes TX10, TX15, TX20, TX25 and TX30. TX40

867/1 Z TORX® BO

- BO Torx bits with safety pin, 1/4" drive.

25 mm in length.

Used to install or remove BO (hole) Torx® screws with safety pin (anti-tamper pin).

Universal.

Includes TX10; TX15; TX20; TX25; TX30

840/1 Z Hex-Plus

- Hexagonal bits (Allen head) with 1/4" drive.

Hex-Plus bits with a larger tool to prevent damage to bolts.

Compatible with all hex socket head bolts (Allen head).

25 mm long. Universal.

Includes 3; 4; 5; 6; 8

800/1 TZ

- Slotted tips with 1/4" drive.

25 mm long.

Measurements are given in millimeters (thickness x width of the sheet).

Universal and resistant.

Includes 1.0 x 5.5 mm tips.

Compatible with: > Phillips, Pozidriv, Torx®, slotted and hex (Allen) screws.
