Standard replacement piston set.
Stock 9.0:1 compression ratio.
Piston weight 253gr.
Piston pin weight 77gr.
Head type: Flat top
/ Dome +1.2cc. Compression height 1.210". Bore 3.00"
/ Stroke 3.812". Rod length 6.926"
/ Cyl. length 4.650".

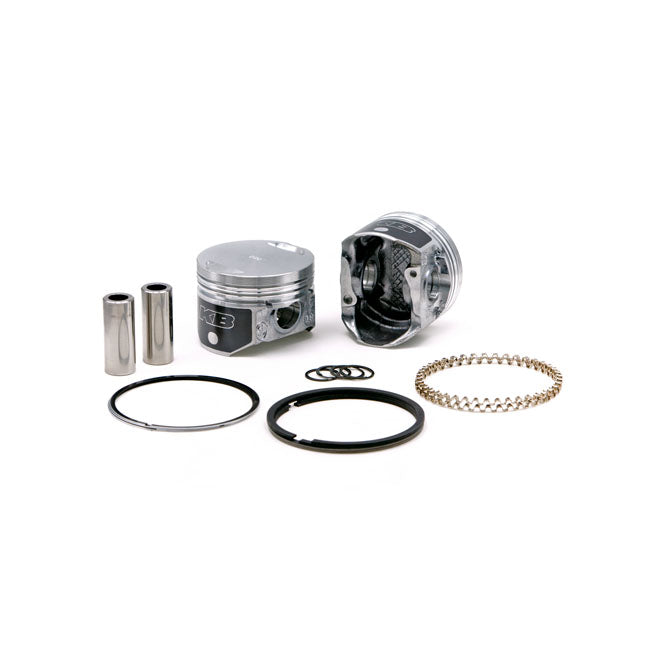

Comes with T5 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance.
See instructions.
Fits: > 86-22 XL883

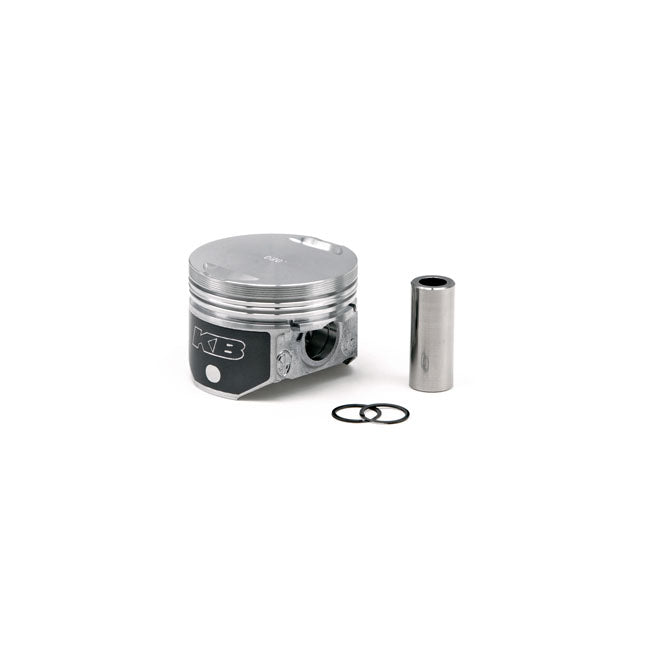

KB Performance, XL883 Piston Kit. Std For Harley Davidson
274.74 €
Stock 9.0:1 compression ratio.
Piston weight 253gr.
Piston pin weight 77gr.
Head type: Flat top
/ Dome +1.2cc. Compression height 1.210". Bore 3.00"
/ Stroke 3.812". Rod length 6.926"
/ Cyl. length 4.650".
Comes with T5 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance.
See instructions.
Fits: > 86-22 XL883
