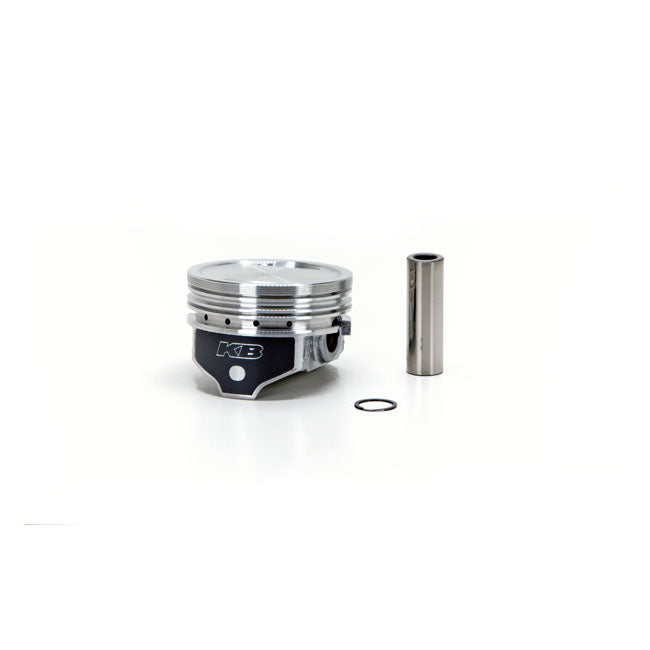

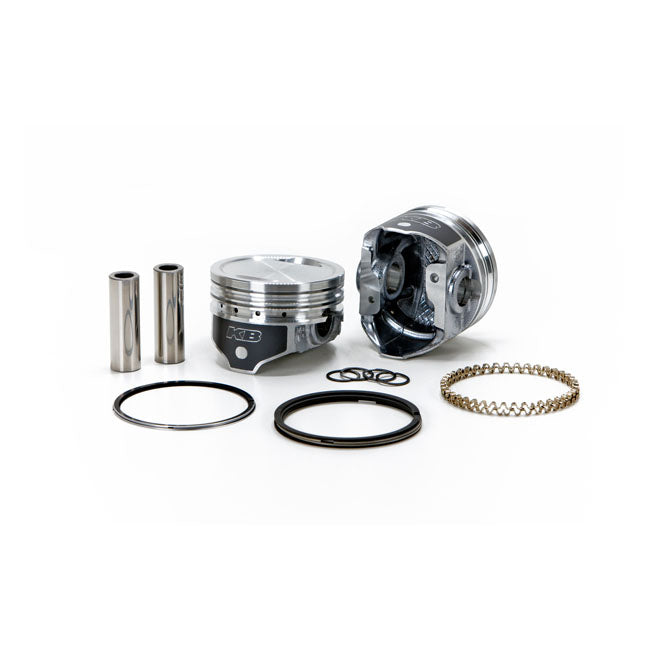

KB Performance, 883-1200 Big Bore Piston Kit. Std For Harley Davidson
308.95 €
Skip to product information
High compression.
883-1200 conversion piston set.
Compatible with stock unmodified cylinder heads.
10:1 Compression ratio.
Piston weight 335gr.
Piston pin diameter .792" and weight 97gr.
Head type: Dish.
Dome +10cc.
Compression height 1.210".
Bore 3.498".
Stroke 3.812".
Rod length 6.926".
Cyl. length 4.650".
Comes with T5 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance.
See instructions.
Note: 1200cc cylinders must be purchased for 04-up 883 XL models.
Stock cylinders liners of 04-up XL models are too thin to bore to 1200 size.
Fits: > 86-22 XL883 (883 to 1200 conversion)
