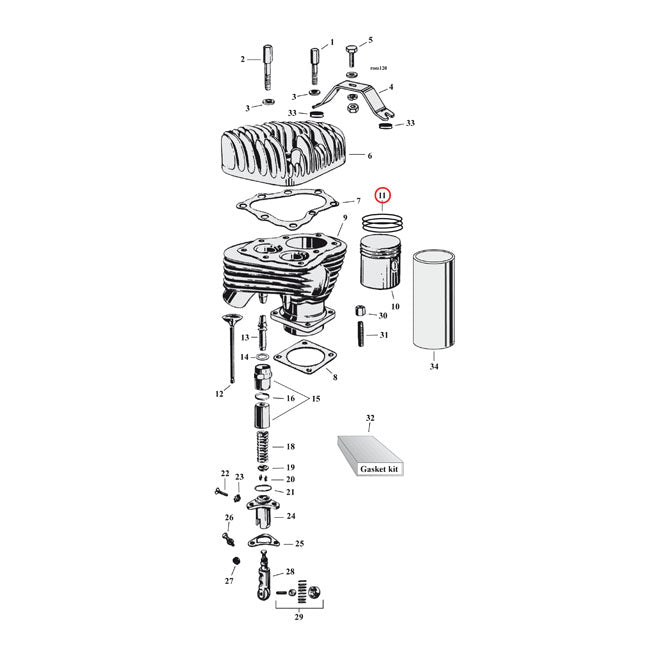

Hastings 2-3/4" Bore Piston Ring Set. +.050"
40.78 €
Skip to product information
Used with late style 1950-1973 pistons with 1/16" gray iron parkerized compression rings and the 3-piece flex vent style chrome plated oil rings.
Also fits 52-56 K, KH, KHK 55" (900cc) Flathead models.
Standard Inside Diameter: 2.745" (69.723 mm). 1st Ring: 1.6 mm. 2nd Ring: 1.6 mm.
Oil ring: 4.75 mm and 1/8" (3.2 mm) second ring and oil ring, for these Hastings rings see Flathead model years 1950-1973.
These rings do not fit early pistons from 1929-1949.
Tech Tip: Piston Grooves vs. Piston Rings
It is not difficult to determine if a Hastings piston ring set will fit a particular piston.
You need to measure the height of the piston groove on the piston itself.
The top 2 grooves will be for the compression rings, the bottom groove will be for the oil ring.
In most cases, Hastings oil rings are of the low-tension, 3-piece flexible vent type.
Ring heights are listed for reference.
Tech Tip: Oversized piston.
For each oversized cylinder, the diameter will increase by 0.010" (0.254 mm).
The standard cylinder bore is included for reference.
(Technical advice information provided by Hastings Manufacturing Company, Inc.)
Fits: > 50-73 45" (750cc) Flathead; all 52-56 K 45" (750cc) and KH, KHK 55" (900cc) Flathead (NU) models
