Axel Joost Elektronik, Daytime Running Light Switch for Harley-Davidson

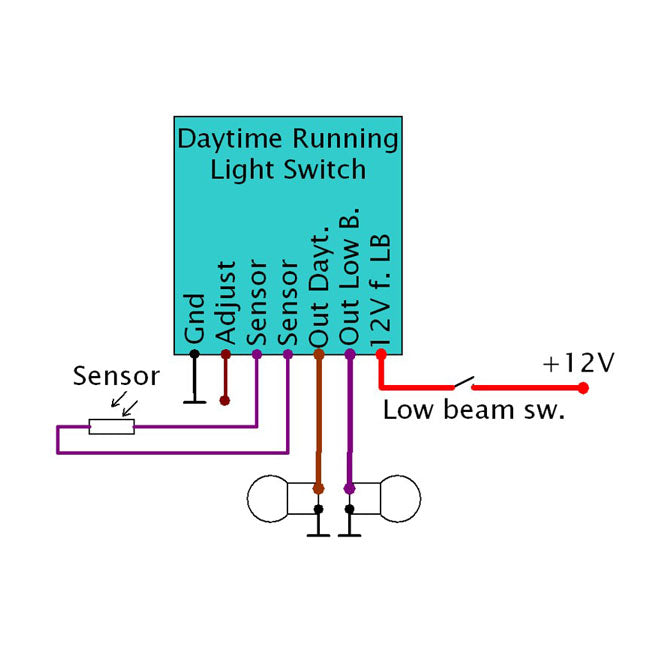

This module controls the automatic change from DLR (daytime running light) to low beam via a sensor.
The changeover time from DLR to dipped beam is less than 0.5 seconds, just like when entering a tunnel.
The transition time from low beam to full beam is 3 seconds slower, so reflections from other traffic or streetlights will not affect the low beam.
The sensitivity can be adjusted and stored in 60 steps.

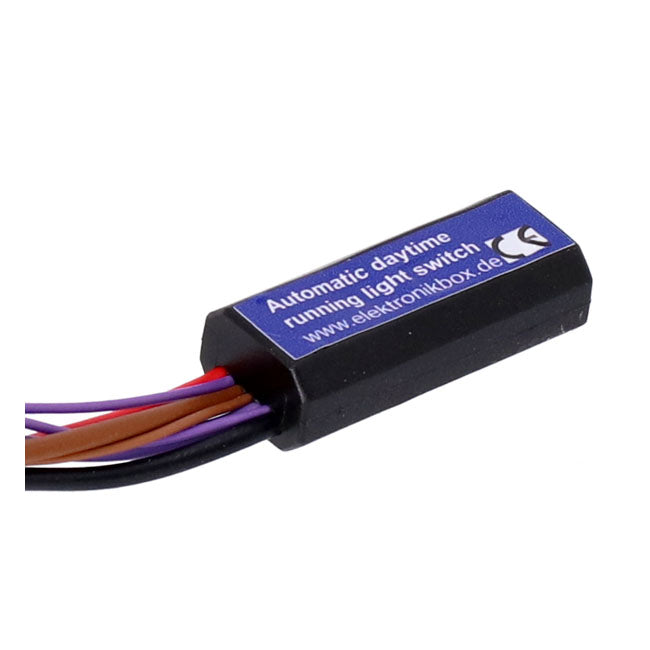

- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with 2k epoxy resin poured waterproof

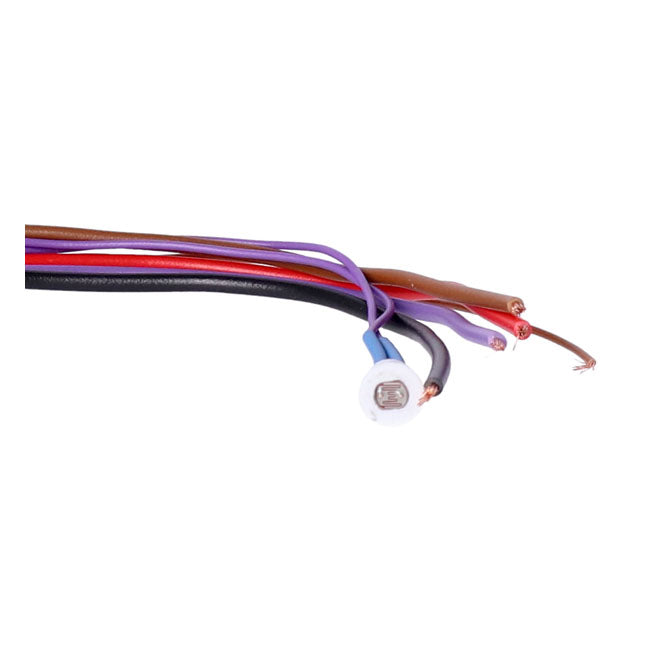

- Sensor: 4.1 mm LDR cell, front surface encapsulated against moisture

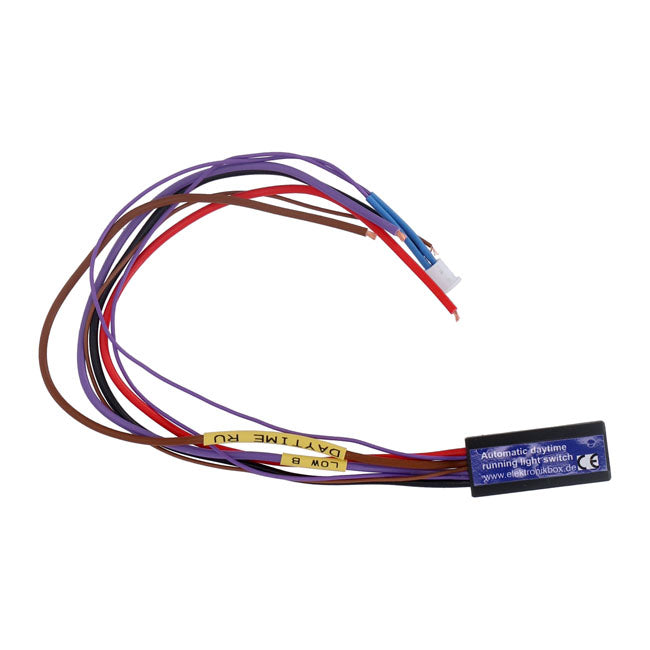

- Connections: 0.14 qmm for input, 0.75 qmm for power outputs
- Maximum output power: 2 x 60 watts
