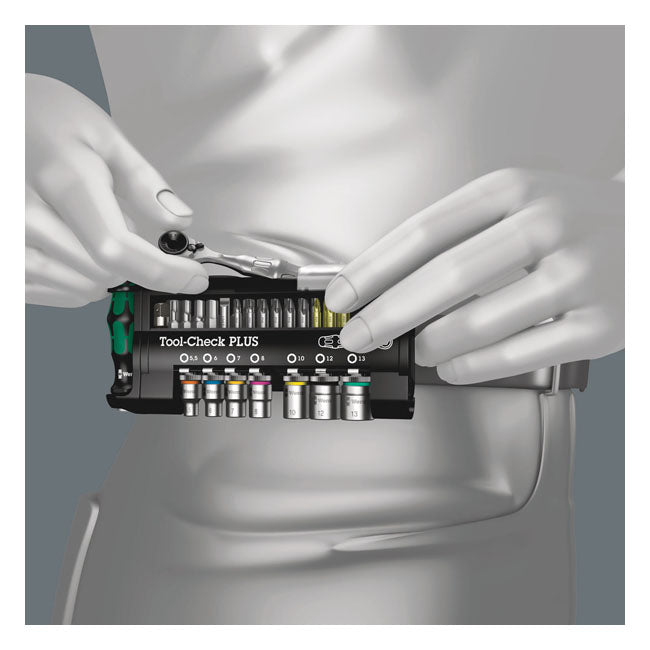

Wera, Ratchet Kit

With 1/4" Imperial Drive (US Sizes)

- US measures

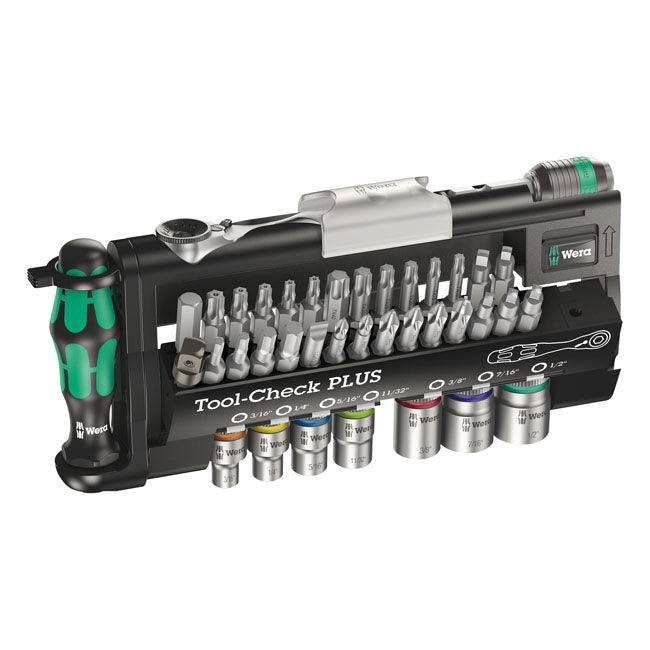

Ratchet kit with bits, sockets and holder, with tip section tilts out for easy access.

39-piece kit with 1/4" US drive.

Includes a 1-point Zyklop Mini ratchet and a screwdriver handle with bit holder.

It accepts 1/4" hex bits and a special adapter that allows the use of standard 1/4" sockets, of which 7 are included, from 3/16" to 1/2".

The sockets are chrome vanadium with a brushed chrome finish and are color-coded to quickly find the correct size.

Also included are 28 Phillips, Torx®, safety pin (tamper-resistant), slotted, hex (Allen head) and Square-Plus bits.

Everything comes in a small, sturdy plastic box.

8001 A Series

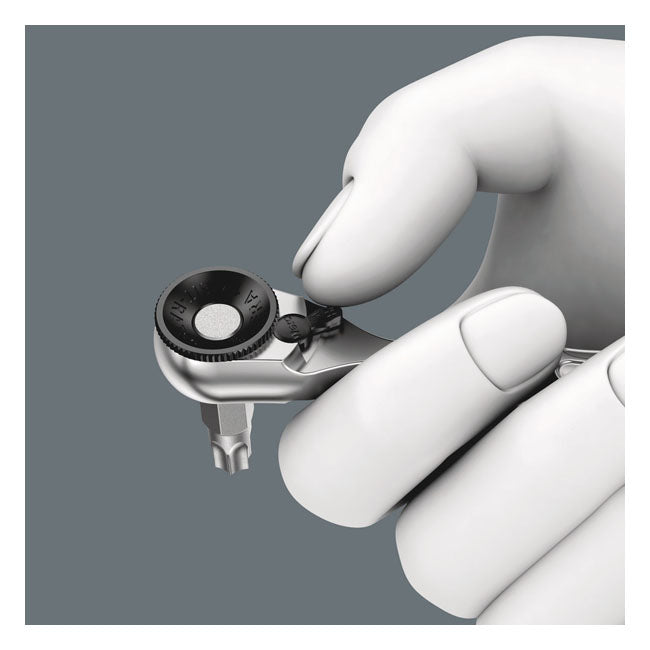

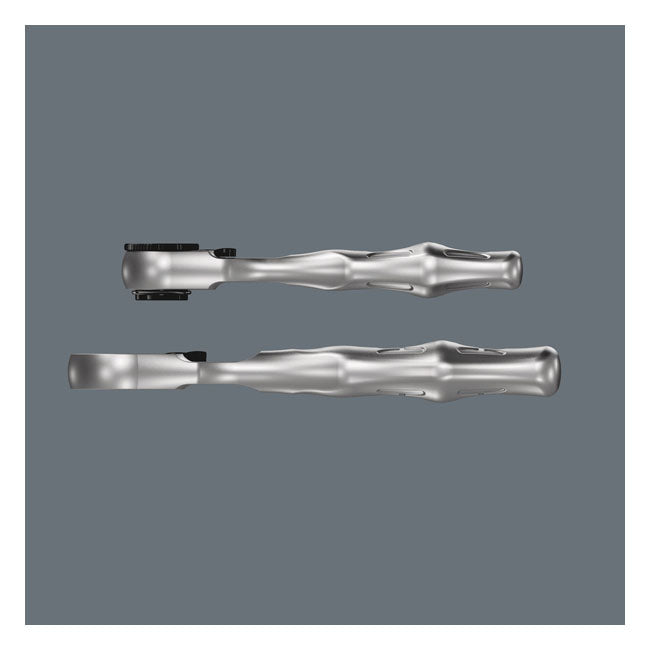

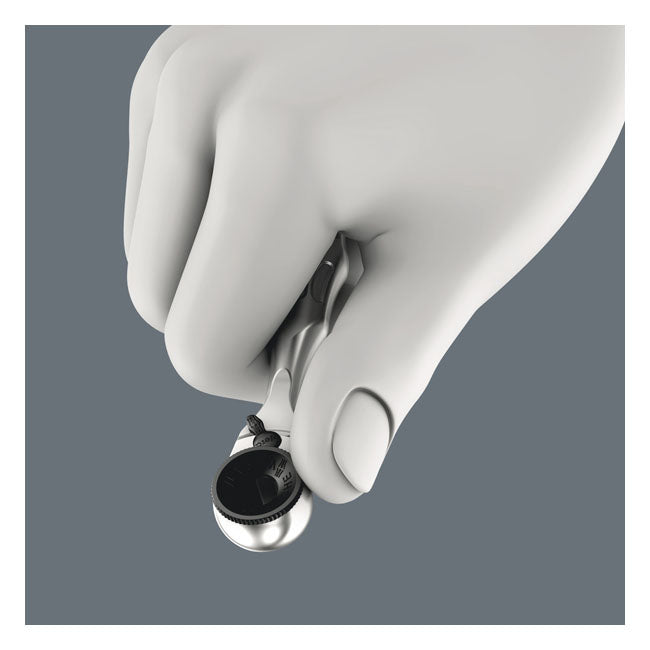

- Zyklop Mini 1-point ratchet.

Drop-forged steel ratchet with 1/4" drive x 87 mm length.

Compatible with 1/4" hex bits according to DIN ISO 1173-C 6.3 and E 6.3, as well as Wera series 1 and 4.

With switch for ratchet direction and a return angle of 6°.

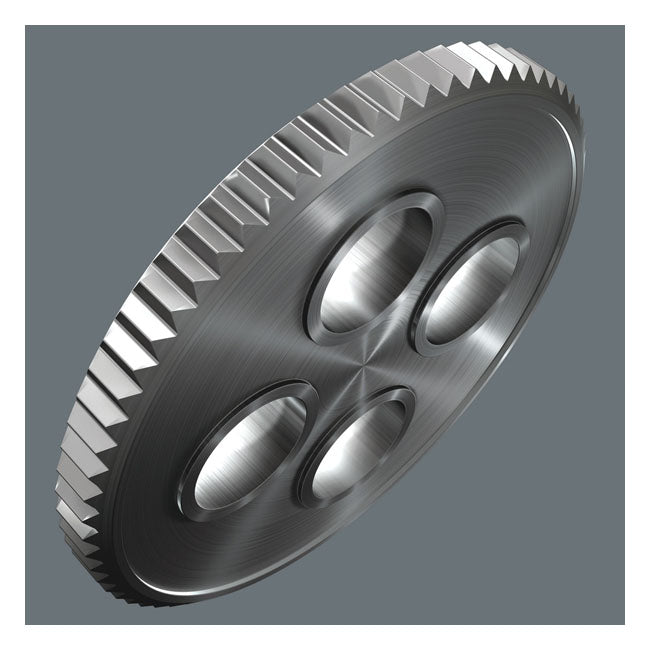

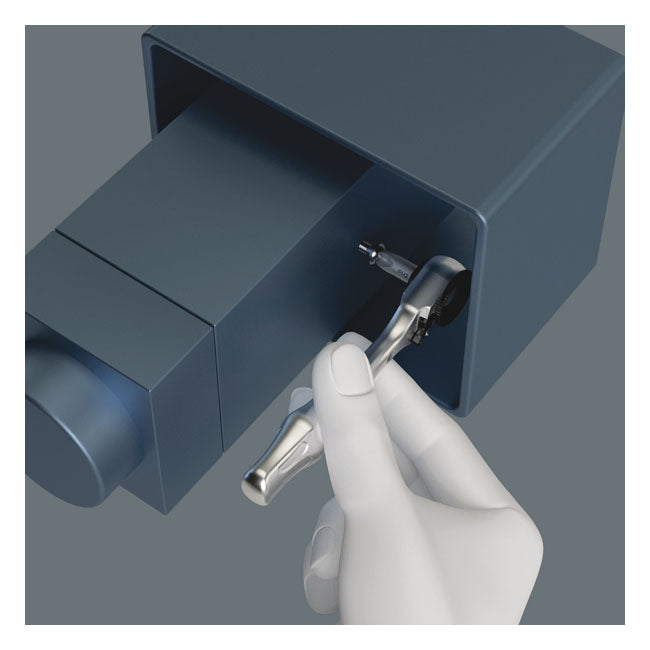

The adjustment wheel allows for quick screwing, which is very useful in tight spaces.

The ratchet allows a minimum tightening torque of 65 Nm, higher than that which could be achieved manually.

Series 813:

screwdriver handle with bit holder.

1/4" x 78mm length input.

Magnetic.

With multi-component Kraftform handle.

Series 889/4/1 K

- Rapidaptor quick-release chuck.

1/4" x 50mm length input.

Compatible with all 1/4" insert bits and longer power bits.

The chuck mechanically holds the bits using a self-locking mechanism: simply push the bit in and it will automatically adjust to the bit length.

It's magnetic.

By pulling the chuck rubber back, the tip is released.

The chuck can be held by hand for greater support during screwdriving, as the sleeve rotates freely.

Series 870/1

- Adapter for 1/4" sockets.

Adapter compatible with the Mini 1 bit ratchet and allows the use of standard sockets with a 1/4" drive. 8790 HMA HF Series

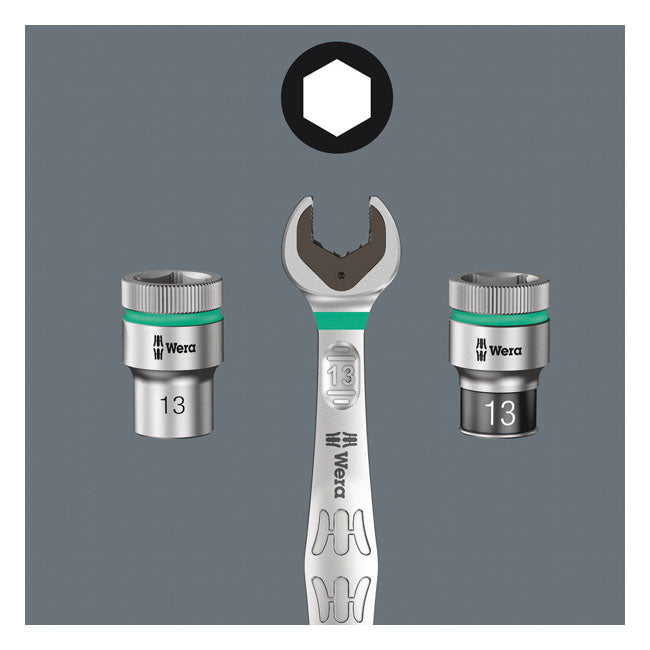

- Zyklop cups.

1/4" drive for hex bolts and nuts.

23 mm long.

With retention function and knurling at the base for manual rotation.

With ball interception ring.

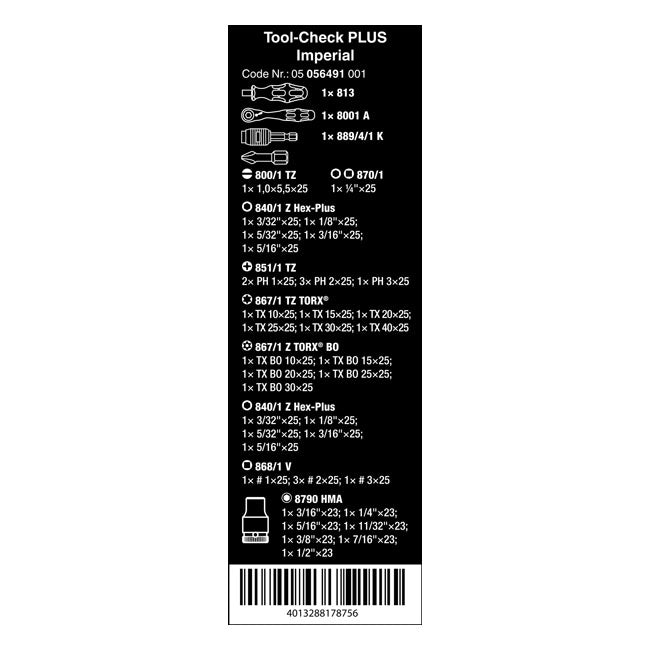

Includes 3/16"; 1/4"; 5/16"; 11/32"; 3/8"; 7/16"; 1/2".

Series 851/1 TZ PH

- Phillips tips.

1/4" square.

Length 25 mm.

Universal and resistant.

Includes 2 x PH1; 3 x PH2; 1 x PH3.

867/1 TZ TORX® Series

- Torx® bits.

1/4" square.

Length 25 mm.

Universal and resistant.

Includes TX10; TX15; TX20; TX25; TX30; TX40. 867/1 Z TORX® BO Series

BO Torx bits with safety pin.

1/4" inlet.

Length 25 mm.

Used to install or remove BO (hole) Torx® screws with a safety pin (tamper-resistant). Universal.

They include TX10, TX15, TX20, TX25 and TX30.

840/1 Z Series

Hex-Plus: Hex bits (Allen head).

1/4" inlet.

Hex-Plus tips with greater contact between the tool and the bolt to prevent damage.

Compatible with all hex bolts (Allen head).

Length 25 mm.

Universals.

They include 3/32", 1/8", 5/32", 3/16" and 5/16".

800/1 TZ Series:

slotted tips.

1/4" inlet.

Length 25 mm.

Measurements are given in millimeters (thickness x width of the sheet).

Universal, resistant.

Include 1.0 x 5.5 mm.

Series 868/1 V

- Square-Plus tips.

1/4" x 25mm square.

Square tips with retention function.

Compatible with square head cap screws. Includes 1x #1; 3x #2; 1x #3.

Compatible with: > Phillips, Torx®, slotted and hex (Allen) screws
