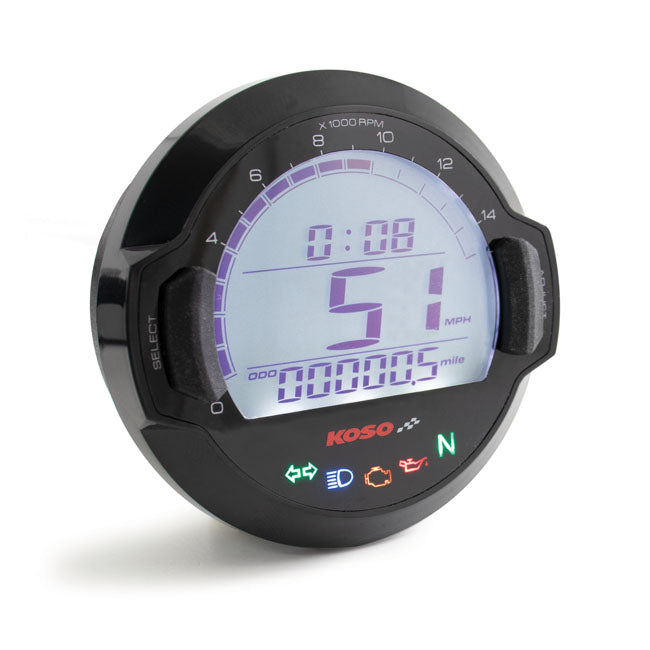

D64 DL-03SR Multifunction Speedometer/Tachometer for Harley Davidson

Black casing, blue backlighting.
12 V DC.
Approved by KBA/ABE.
It includes a speedometer, tachometer, and many other functions.
Below the screen are 5 signal lights (indicator, high beam, EOBD (on-board diagnostics), oil and neutral).
These are only visible when the corresponding signals are activated.
Instead of the tachometer, it can also display a voltage and fuel gauge.
If you are in RPM mode and the fuel level is critical, this is indicated by a flashing symbol.
If your fuel gauge does not have one of the basic adjustable resistors of 100/250/510 or 1200 ohms, you can also program the fuel gauge into learning mode to display the correct information.
- Speedometer: Display range: 0-360 km/h (0-223 mph)
- Tachometer: Display range: 0 - 15,000 rpm
- Units: 1 segment = 1000 rpm
- Total odometer: display range: 0-99,999.9 km (miles)
- Automatic restart after 99,999.9 km (miles)
- Trip A/B: Display range: 0 - 999.9 km (miles)
- Wheel circumference: adjustment range: 300-2500 mm
- Units: 1 mm / pulses: 1-60
- Fuel gauge: 4 bars
- Clock: 24 h
- Digital voltmeter: display range: 5 V DC - 28 V DC
- Indicator lights: turn signals, neutral, oil, high beam, engine warning light (EOBD)
- Dimensions: 70 mm diameter x 35 mm depth x 50 mm installation diameter
- Includes mounting kit, brackets and instructions

Compatible with: > Universal
