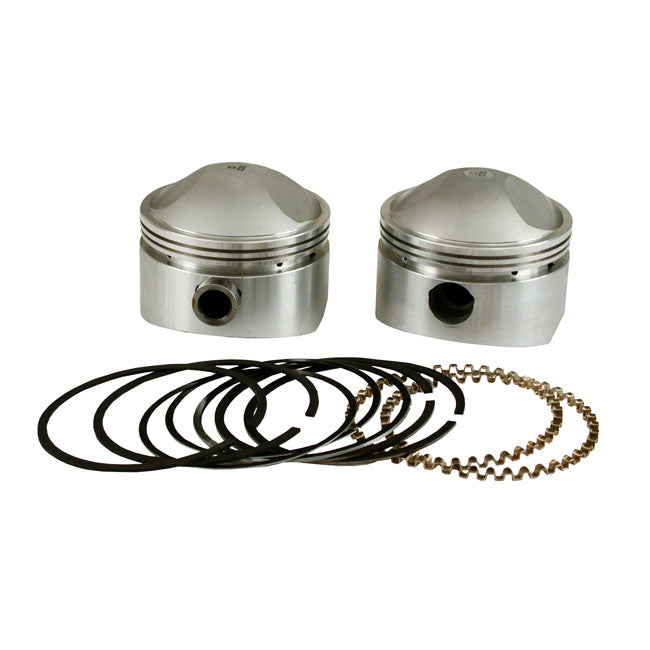

S&S, 3-7/16 "Forged Stroker Piston Kit. Std for Harley Davidson
S&S, 3-7/16 "Forged Stroker Piston Kit. Std for Harley Davidson
Usual price
589.60 €
Usual price
Offer price
589.60 €
Unit price
/
by
Taxes included.
The Shipping expenses They are calculated on the payment screen.
The retirement availability could not be loaded
Forged Piston Set.
For 41-78 1200cc (74 ") Knuckle, Panhead, Shovel and 1340cC Shovel.
Fits Engines with Stroker Flywheels and Stock 3-7/16 "(1200cc) or 3-1/2" (1340cc) Cylinders With Stock 5.330 "Length.
Compression Will Be Approx 8.4: 1 with 4-1/2 "Stroke, 9.4: 1 with 4-5/8 Stroke and 10.8 with 4-3/4" Stroke.
Piston Dome Volume 50cc.
The Advanced Alloy and Piston Skirt Profile for Low Noise and Long Engine Life.
Pistons Include Wrist Pins, Wrist Pin Clips and Piston Rings.
Note: +.060 "3-7/16" Bore of the 1200 Engine is Identical to the Standard 3-1/2 "Bore of the 1340cc Engine.
Note: In Any and All Applications the Technician Must Be Uble to Judge Components for Their Suitability in Combination With The Other Engine Components, Prior to Installion.
It is of importance that a Knowledgeable mechanic Will install & make adjustments as required.
The Rider Must Follow Standard Break-in and Riding Procedures for Overhauled Engines.
Fits:> 41-84 B.T. With 84 "(4-1/2" Stroke), 86 "(4-5/8" Stroke) & 88 "(4-3/4" Stroke) Engines (NU)
For 41-78 1200cc (74 ") Knuckle, Panhead, Shovel and 1340cC Shovel.
Fits Engines with Stroker Flywheels and Stock 3-7/16 "(1200cc) or 3-1/2" (1340cc) Cylinders With Stock 5.330 "Length.
Compression Will Be Approx 8.4: 1 with 4-1/2 "Stroke, 9.4: 1 with 4-5/8 Stroke and 10.8 with 4-3/4" Stroke.
Piston Dome Volume 50cc.
The Advanced Alloy and Piston Skirt Profile for Low Noise and Long Engine Life.
Pistons Include Wrist Pins, Wrist Pin Clips and Piston Rings.
Note: +.060 "3-7/16" Bore of the 1200 Engine is Identical to the Standard 3-1/2 "Bore of the 1340cc Engine.
Note: In Any and All Applications the Technician Must Be Uble to Judge Components for Their Suitability in Combination With The Other Engine Components, Prior to Installion.
It is of importance that a Knowledgeable mechanic Will install & make adjustments as required.
The Rider Must Follow Standard Break-in and Riding Procedures for Overhauled Engines.
Fits:> 41-84 B.T. With 84 "(4-1/2" Stroke), 86 "(4-5/8" Stroke) & 88 "(4-3/4" Stroke) Engines (NU)
