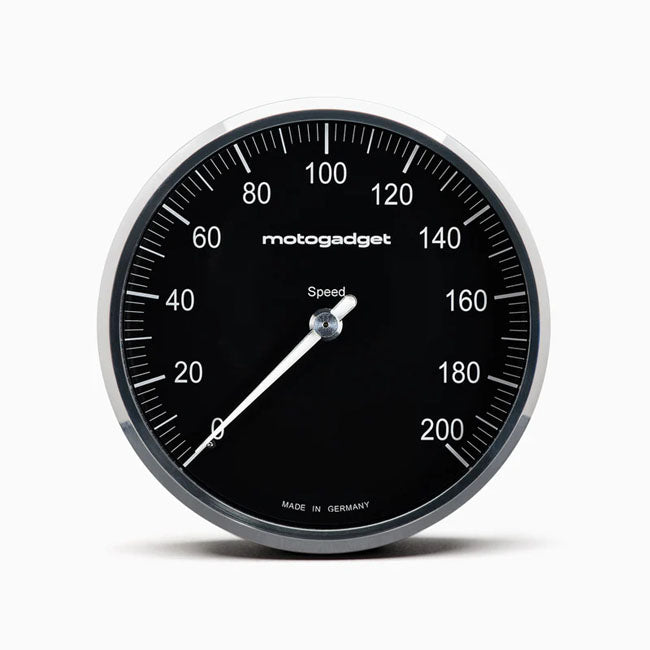

Motogadget, Chronoclassic 2 'Speedo Face' speedometer. Polished Bezel For Harley Davidson

Black with polished bezel
On this 'Speedo Face' from Chronoclassic, the large, classic needle indicates speed.
RPM (up to 20,000 RPM) and all other functions are displayed digitally on red LEDs.
When turned off, only the black dial is visible, for a perfect classic look.
The digital display, an in-house Motogadget development, consists of an array of 512 tiny, super-bright red LEDs that shine through the dial when activated.
The digital display has two lines.
The top line shows the gear and speed/RPM and the bottom line shows the display values, which can be changed at the touch of a button.
The illuminated pointer, perfectly illuminated backlight, and automatic brightness adjustment of the matrix LEDs ensure optimal readability in both direct sunlight and darkness.
Note: For non-fuel injected motorcycles, a Motoscope junction box is required to operate the indicator lights.
Available as 930311 HD J1850 and 936577 Breakout Box A / 936578 Breakout Box B for universal applications.
- Dimensions: 80 mm diameter x only 22 mm deep
- 11 indicator lights: Immobilizer/Alarm (Plug & Ride only), Reserve, Oil Temperature/Water Temperature, Check Engine/MIL/ABS/ASR (Plug & Ride only), Oil Pressure, Left Turn Signal, Right Turn Signal, High Beam, Neutral, Universal Warning Light
- Compatible with CAN-bus vehicles
- White illuminated pointer/needle
- Adjustable shift light 0-20,000 RPM
Digital display:
- Gear indicator
- Speed 999 [km/h/mph]
- Trip A 999.9 [km/mi]
- Trip B 999.9 [km/mi]
- Odometer 999999 [km/mi]
- Oil temperature 0-200 [°C / °F]
- Water temperature 0-200 [°C / °F]
- Air temperature -20 - 100 [° C / ° F]
- Oil pressure 0 - 10.0 [bar / psi]
- Operating hours counter 9999 [h]
- Travel time [hour/minutes/seconds]
- Clock - Time 0-100 km/h - 0 to 99.99 s
- Acceleration 0 - 2.00 [G]
- Average speed 999 [km/h/mph]
- Maximum speed 999 [km/h/mph]
- Maximum positive acceleration 0 - 2.00 [G]
- Maximum negative acceleration 0 - 2.00 [G]
- Digital maximum RPM 20,000 RPM
- On-board voltage 9V - 18V
- Fuel gauge 0% - 100%
Adjustable warning messages:
- Oil temperature
- Water temperature
- On-board voltage
- Air temperature
- Oil pressure
- Tank capacity
- Service interval
- Speed warning (gear shift flashing)
Chromeclassic 2 includes:
- Instrument with 75 cm connection cable and plug connection
- Cable fuse
- Speedometer sensor with 150 cm connection cable and two magnets
- Mini push button
- Stainless steel mounting screws
- QR code for assembly and operating instructions

Compatible with: > Universal
