Koso HD-06 4-Piece Gauge Kit Red Display for Harley Davidson

KOSO, HD-06 4-piece gauge kit.
ABE approved red screen.
Plug & play replacement for OEM instruments.
Connect the OEM connectors to the instruments and install them in the fairing.
Ready!
It offers a single display color option (red) and 5 intensity levels for the digits and graphics on each individual instrument.
Once the ignition is turned off, all instruments are completely black for a great custom look.

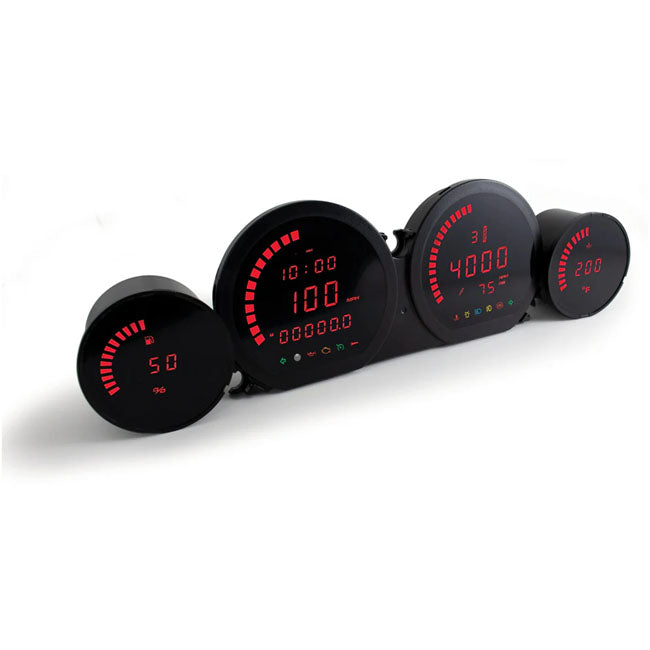

This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, and a 2" fuel gauge.
- Screen color: red
- 12 V DC
- Speedometer: 0 to 299 km/h (0 to 199 mph)
- Screen refresh rate: <0.5 seconds
- Overspeed warning setting: 30 to 299 km/h (19 to 199 MPH).
When the set value is reached, the warning light comes on.
- Maximum speed record: 0 to 299 km/h (mph)
- Odometer display range: 0 to 999,999 km (miles) displayed in 0.1 km (miles) increments
- Trip odometer A/B: 0 to 9,999.9 km (miles)
- Tire circumference: Adjustment range: 50 - 210%. Set by 1%.
- Oil change/maintenance interval: Off - 300 - 10,000 miles or 500 - 16,000 km adjustable.
Adjustable per 1 mile/km.
Counts down as the number of miles/km increases.
Starting from 0 km/miles, the warning light flashes and the device counts down to the maximum minus 999 km/miles.
Manual restart
- Gear indicator: Off, N, P, R, 1, 2, 3, 4, 5, 6
- Tachometer: 0 to 9,990 rpm. Display every 10 rpm
- Shift light: 2,000~8,000 rpm, adjustable every 100 rpm.
The light comes on when the set RPM is reached
- Engine temperature: -40 to 300 °C / -40 to 572 °F
- Fuel gauge configuration: HD standard / customer specific
- Standard 1-HD Fuel Warning Setting: LCD flashing when > 211 Ω, LCD off when < 187 Ω
- Custom 2-HD Fuel Warning Settings: LCD flashing when < 20%, LCD off when > 30%
- Fuel Tank Volume: OFF / 1 ~ 9.9 US Gallons
- Average fuel consumption: OFF / MPG (US specification) / MPG (UK specification) L/100 km / km/L
- 'Fuel Remaining Distance': The LCD screen displays 'LO RNG' and flashes as a warning when the remaining range is less than 16 km (10 miles)
- Clock: 12 h / 24 h
- Oil Temperature Gauge: 0 to 400°F (32 to 248°C), displayed in increments of 1°F (1°C)
- Maximum oil temperature record (storage): 0 to 400 °F (32 to 248 °C)
- Air Pressure Gauge: Display: Display - - - if no sensor is installed, 0 – 150 PSI. Displays by: 1 PSI
- Air Pressure Gauge Calibration: Calibration range: 0 – 25 PSI +/- 1 PSI. Calibration unit: 1 PSI. Default value: 0 PSI
- Voltmeter range: DC 8 to 18 V
- Brightness digits: 5 levels
- Color digits/graphics: 1 color: red
- Operates from -10°C to 60°C
- JIS D 0203 (S2) standard specified
- Speedometer and tachometer weight: 286 grams
- Oil temperature weight: 81 grams
- Fuel gauge weight: 81 grams
- Indicator lights: right + left turn signal (green), photometric detection, oil (red), check engine light (yellow), cruise control (orange/green), anti-theft device (red), water temperature (blue), warning light (orange/green), high beam (blue), fog light (green), ABS (yellow)

Fits: > 14-20 Touring (excl. CVO and Road King)
