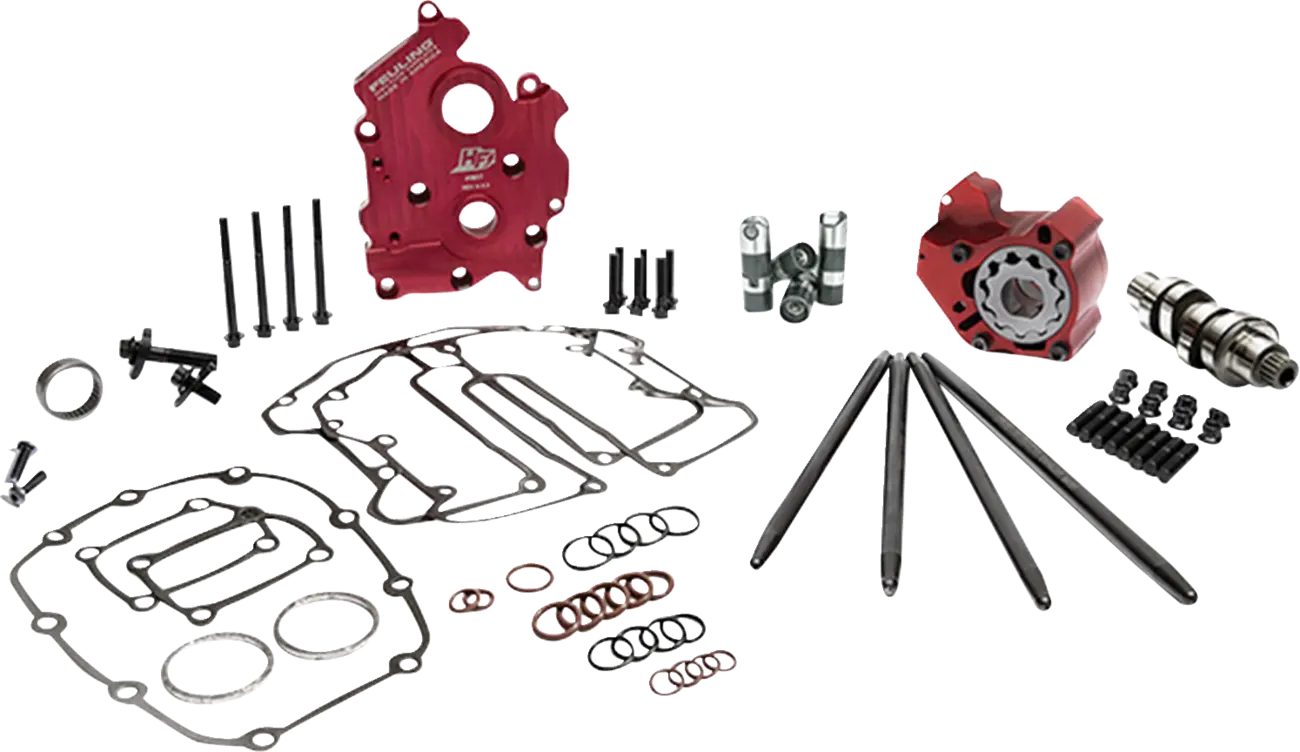

Camshaft Installation Kit for Harley Davidson M8

487 Reaper® camshaft with chain drive, cam installation kit, Race Series® short stroke tappets, one-piece pushrod, Race Series® oil pump, high flow cam plate, ARP rocker arm studs and nuts, and cam plate/oil pump bolts included in this kit.
487 Reaper Camshaft
Screw-on
Chain drive
RPM range: 2250 - 6100
Camshaft for 114" and 117" engines
It responds very well to increased diameter and/or compression.
It maintains power at low revolutions and offers superior performance at 2950 rpm compared to the standard engine.
Camshaft specifications measured at the tappet at 0.050 with a rocker arm ratio of 1.61. Camshaft installation kit
Includes camshaft bearing, camshaft/crankshaft bolts and gasket/O-ring kit
Race Series® Short Travel Tappets
Hydraulic tappets manufactured from machined steel with a stroke of 0.115"
One-piece push rods
HP+ 0.165 wall thickness, +0.040, one piece
Race Series® Oil Pump
High-flux chrome molybdenum gerotor gears 2.250
27% more pressure and volume of swept gears than the original
42% more scavenged volume with ducts, port size and holes adapted to the engine crankcase
46% more oil volume for the crankshaft and connecting rod
Engine temperatures between 15° and 25° lower
Oil temperatures between 15° and 30° lower
10-30 PSI more oil pressure
It reduces wet sump, exhaust gas buildup, and grease in air filters.
Magnets on the oil pump to protect the gears and pressure relief valve
The results of the FEULING® tests show a 50% reduction in the oil level in the engine crankcase.
High-flow cam plate
Power increases at the rear wheel of 2 horsepower and 2 ft-lb of torque can be achieved.
Made in the USA
Feuling does not recommend making adjustments that exceed factory emissions standards.
The kit includes: • Reaper 487 camshaft • HP+ pushrods • Race Series® short stroke tappets • High flow cam plate • Race Series® oil pump • Camshaft installation kit • ARP rocker arm studs and nuts • Cam plate/oil pump fasteners
For 17-25 M-8 oil-cooled engines
FEULING PARTS 7272ST
