Camshaft Installation Kit for Harley Davidson M8

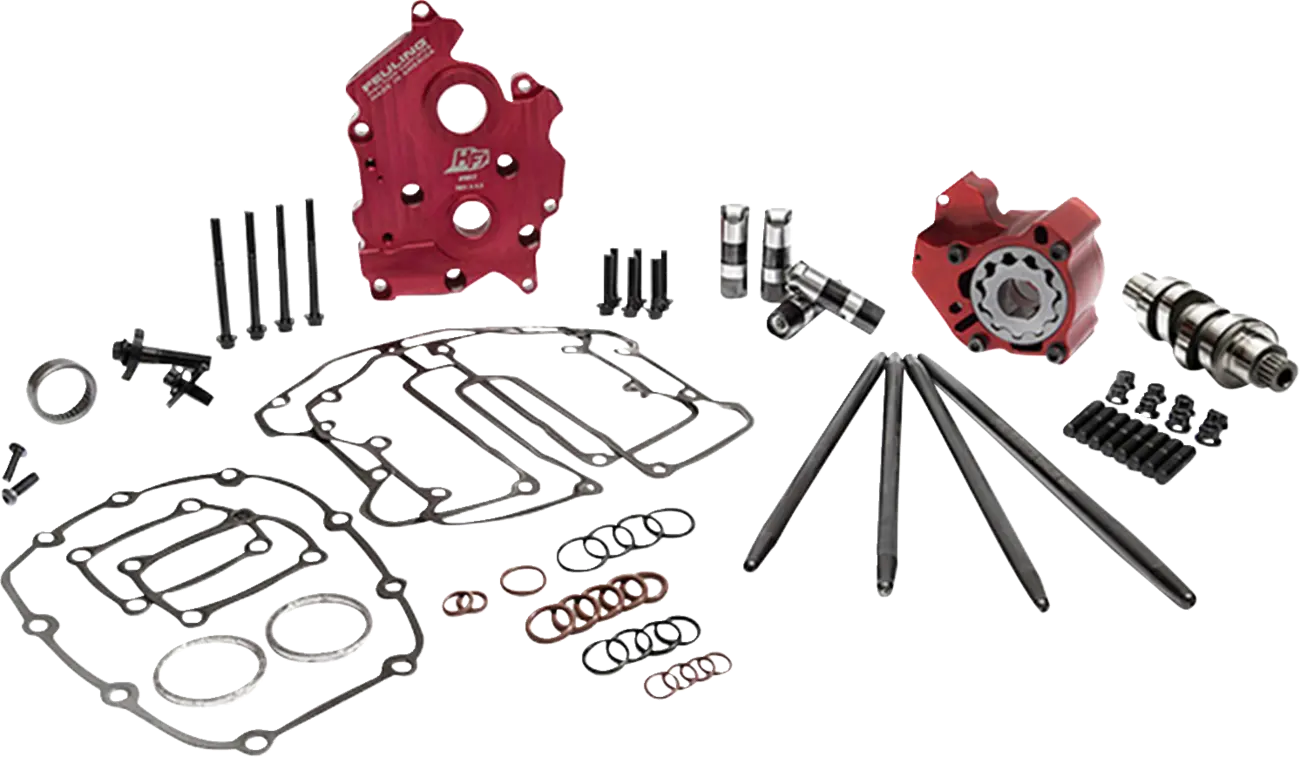

487 Reaper® camshaft with chain drive, cam installation kit, Race Series tappets, one-piece pushrod, Race Series® oil pump, high-flow cam plate, ARP rocker arm studs and nuts, and cam plate/oil pump bolts included in this kit.
487 Reaper Camshaft
Chain drive
38° Overlap
RPM range: 2250 - 6100
Camshaft for 114" and 117" engines
It responds very well to increased diameter and/or compression.
It maintains power at low speeds and pulls strongly above 2950 rpm compared to the stock engine.
Cam specifications measured on the tappet with a rocker arm ratio of 1.61 and with the engine on the tappet.
Camshaft installation kit
Includes cam bearing, cam/crankshaft bolts and gasket/O-ring kit.
Race Series® Tappets
Full stroke hydraulic tappets made of machined steel with a stroke of 0.200"
One-piece push rod
7/16" diameter high-strength HP+ tube with 0.165" wall thickness, precision concentricity, heat-treated with a black oxide finish
Race Series® Oil Pump
High flow chrome molybdenum gerotor gears 2.250
27% more pressure and gear sweep volume than the original
42% more scavenged volume with ducts, ports sized and holes adapted to the engine crankcase
46% more oil volume to the crankshaft and connecting rod bearing
Engine temperatures between 15°C and 25°C cooler
Oil temperatures between 15°C and 30°C cooler
10-30 PSI more oil pressure
It reduces wet sumps, exhaust leaks, and grease buildup in air filters.
Magnets to protect the gears and pressure relief valve
The results of the FEULING tests show a 50% reduction in the oil level in the engine crankcase.
High-flow expansion plate
Power increases at the rear wheel of 2 horsepower and 2 ft-lb of torque can be achieved.
Made in the USA
Feuling does not recommend making adjustments that exceed original emissions standards. The kit includes: • Reaper 487 camshaft • HP+ pushrods • Race Series® lifters • High-flow cam plate • Race Series® oil pump • Camshaft installation kit • ARP rocker arm bolts and nuts • Cam plate/oil pump fasteners
For 17-25 M-8 oil-cooled engines
FEULING PARTS 7272
