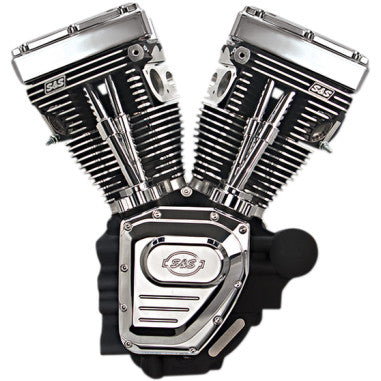

T124LC SERIES LONG BLOCK ENGINES FOR HARLEY-DAVIDSON

S&S CYCLE T124LC SERIES LONG BLOCK ENGINES FOR HARLEY-DAVIDSON ENGINE T124LC BLK 07-16FL Lower Compression, 10.2:1, for great street torque

Includes Super Stock™​ heads and T2 crankcase

TC3 oil pump and cam plate

Easy start 585 gear drive cams with redesigned cam cover

99-06 applications have revised oil line routing (no longer require installation kits)

Specs: displacement 124"; bore 41/8​"; stroke 45/8​"; S&S forged dish pistons, 11cc; compression ratio 10.2:1

No fuel system or ignition systems included

Special head machining fits stock length intake manifolds (S&S manifold size 405)

Stock style breathing system; compatible with stock and most performance air cleaners

Made in the U.S.A.

T124LC SERIES LONG BLOCK ENGINES

NOTE: Additional components required for installation, components sold separately.

NOTE: Cylinder heads on T-Series long block engines are 99-05 style. Owners of 06 models will need to purchase a set of 99-05 style, offset intake flanges.

NOTE: Cylinder heads on these engines are specially machined to compensate for the non-stock cylinder length. As a result, they are compatible with manifolds and throttle bodies with stock length intake runners. In addition, the breather vent bolt locations have been adjusted so they are in the stock location, so stock style air cleaner back plates will bolt up to these engines.
