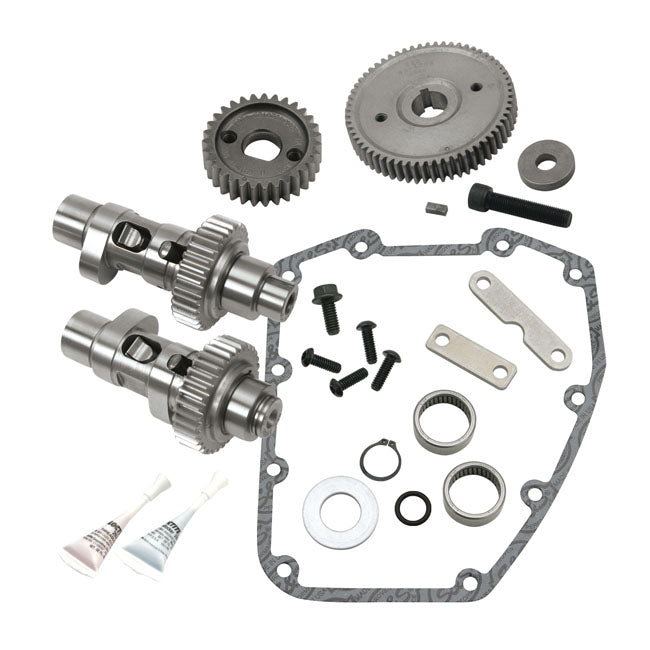

S&S, Easy Start Gear Drive Hp103 Camshaft Kit (IOG) For Harley Davidson
S&S, Easy Start Gear Drive Hp103 Camshaft Kit (IOG) For Harley Davidson
Precio habitual
1,235.75 €
Precio habitual
Precio de oferta
1,235.75 €
Precio unitario
/
por
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
.575" valve lift.
IOG = gear drive cams with Inner & Outer drive Gears.
Complete kit with installation hardware, bearings and gasket.
Torque for stock 96" Touring bikes.
Strongest cam from idle to 4000 RPM for 96" to 106".
Not recommended for 10:1 or higher CR.
Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting.
This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft.
After starting the compression release lobe is retracted by centrifugal force.
The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors.
A stock starter and battery is enough.
When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else.
Note: Required installation kit for Easy Start Cams are included in complete kits (IOG) only.
The installation kit for this kit is separately available as 531268 and compatible with gear drive models only.
Note: Not compatible with 79cc S&S heads.
Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs.
Note: Not compatible with kickstart models.
Note: Only camshafts made before Jan. 2010 will require adjustable pushrods.
Note: Below 900 RPM you may hear a clicking sound.
Adjust idle speed to 1000-1100 RPM.
Fits: > 06-17 Dyna; 07-17 Softail; 07-16 Touring (NU)
IOG = gear drive cams with Inner & Outer drive Gears.
Complete kit with installation hardware, bearings and gasket.
Torque for stock 96" Touring bikes.
Strongest cam from idle to 4000 RPM for 96" to 106".
Not recommended for 10:1 or higher CR.
Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting.
This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft.
After starting the compression release lobe is retracted by centrifugal force.
The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors.
A stock starter and battery is enough.
When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else.
Note: Required installation kit for Easy Start Cams are included in complete kits (IOG) only.
The installation kit for this kit is separately available as 531268 and compatible with gear drive models only.
Note: Not compatible with 79cc S&S heads.
Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs.
Note: Not compatible with kickstart models.
Note: Only camshafts made before Jan. 2010 will require adjustable pushrods.
Note: Below 900 RPM you may hear a clicking sound.
Adjust idle speed to 1000-1100 RPM.
Fits: > 06-17 Dyna; 07-17 Softail; 07-16 Touring (NU)
