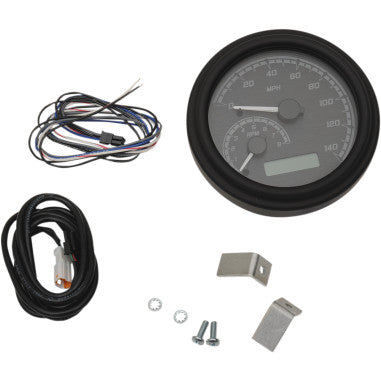

MVX SERIES ANALOG GAUGE SYSTEMS FOR HARLEY-DAVIDSON

DAKOTA DIGITAL MVX SERIES ANALOG GAUGE SYSTEMS FOR HARLEY-DAVIDSON Black/Gray/Black MVX Series Analog Gauge System Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge

Systems for 99-03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)

Systems for 11-19 models feature 31 user-selectable colors for pointer, backlight and LCD message center

Three different face options available: black with red accents, black with gray accents and white with gray accents

8000 rpm tachometer has adjustable shift point and can display in digital numeric readout

Resettable miles to service with a warning (user settable countdown) and hour meter

Clock function (12-hour format)

Voltage readout with low-voltage alert

Cylinder head temperature sensor (if bike is equipped with factory sender unit)

Oil pressure warning light (sold separately, PART #2212-0513 or DS-250019)

Seven-speed gear-position indicator, compatible with 3- to 7-speed transmissions

Security system indicator

Automatic turn signal cancelling compatible

Wait to start/check engine light function

Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4​-mile time and speed

Wiring installation: direct plug-in gauge

Case diameter measures 41/4​​" and bezel diameter of 45/8​​"
