Motogadget M.Unit Blue Digital Control Module For Motorcycles 4002040
Motogadget M.Unit Blue Digital Control Module For Motorcycles 4002040
Precio habitual
405.70 €
Precio habitual
Precio de oferta
405.70 €
Precio unitario
/
por
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

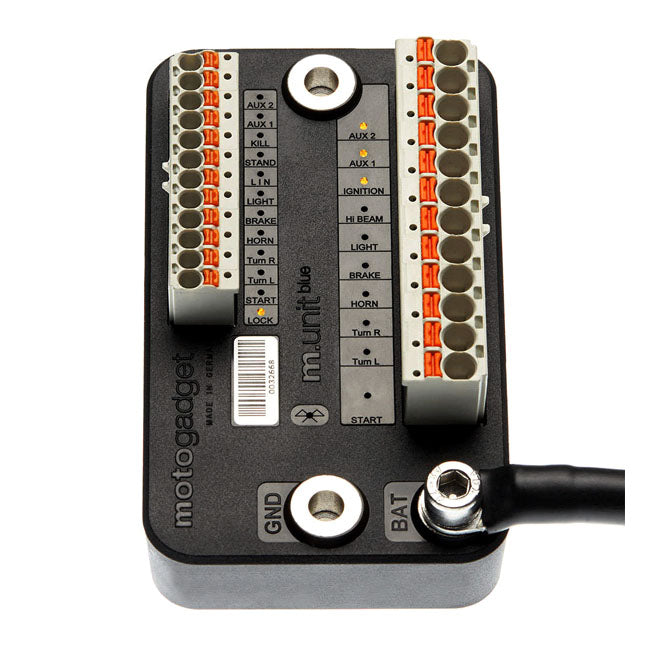

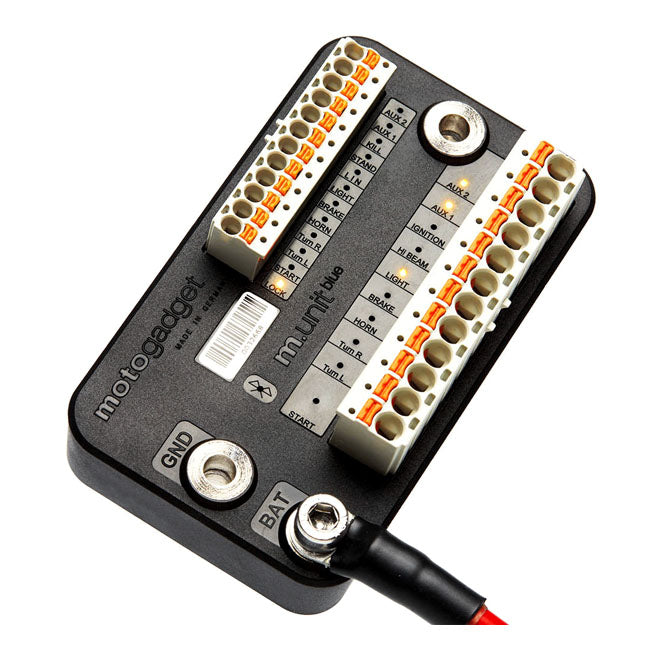

Motogadget M-Unit Blue Bluetooth Digital Control Module For Motorcycle
- The new m.unit blue has moved on from the established previous version by undergoing significant development and improvements. It is now equipped with 12 inputs and 10 outputs, replaceable high-quality cable clamps and, most notably, Bluetooth LE. This enables the m.unit blue to be connected to our 'm.ride' smartphone App. This feature is unique for motorbike accessories.
- The m.ride App manages the entire setup and alarm system. Fault diagnostics can also be performed during operation and without having to remove the m.unit. The secure, encrypted Keyless Go function can also be used.
- When this function is activated and you approach your motorbike with your smartphone, the on-board electrical system is activated and the motorbike is ready to be started.
- The m.unit blue is the digital control unit for your motorbike - the heart of the entire on-board electrical system. It can be operated using buttons or using conventional handlebar switches. It controls all necessary components on the vehicle while also performing fuse functions.
- There are considerably fewer relays and individual components in the wiring harness and the vehicle can be rewired with less effort in a very short amount of time.
- Features (without smartphone and m.ride App)
- Complete digital control using buttons possible with 4 or 5-button operation.
- Complete replacement for the fuse box. 10 independent circuits are digitally monitored and switched off if there are faults. After the fault is recitified, the safety function is automatically reset.
- Integrated alarm system that can be installed in any position.
- Integrated, digital flasher relay that is load-independent; automatic switch-off optional and can be set; m.wave mode can be selected.
- Integrated hazard warning light.
- Turn signal can optionally be set as a positioning light.
- Integrated parking light and headlight flashing.
- Lo-beam and Hi-beam (up to 200 W switched capacity) can be controlled using only one button.
- Integrated, digital brake light modulator; flashing mode can be programmed.
- Acceleration-controlled emergency brake light (automatic warning signal).
- Integrated starter relay for the starter system with solenoid (up to 30 A switched capacity).
- Intelligent and configurable management/switch-off of power consuming devices so that the maximum starting energy from the battery can be used when starting the motorbike.
- Integrated, digital horn relay.
- Two configurable additional outputs AUX1 and AUX2.
- Diagnostics function for assigning inputs, outputs, the circuit switching status, short circuit diagnostics etc.
- Calibration and current measurement enables faults to be detected on all lamps.
