KB Performance, 1340Cc Shovel Pop-Up Piston Kit. Std For Harley Davidson
KB Performance, 1340Cc Shovel Pop-Up Piston Kit. Std For Harley Davidson
Precio habitual
288.72 €
Precio habitual
Precio de oferta
288.72 €
Precio unitario
/
por
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

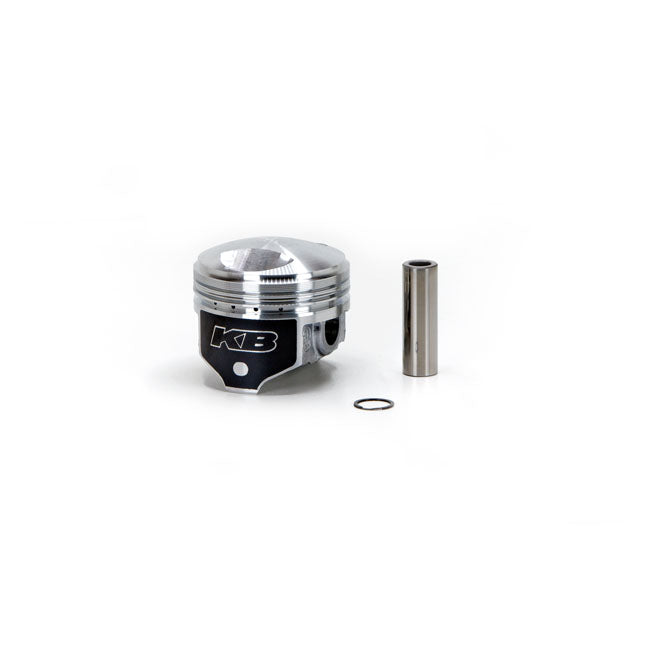

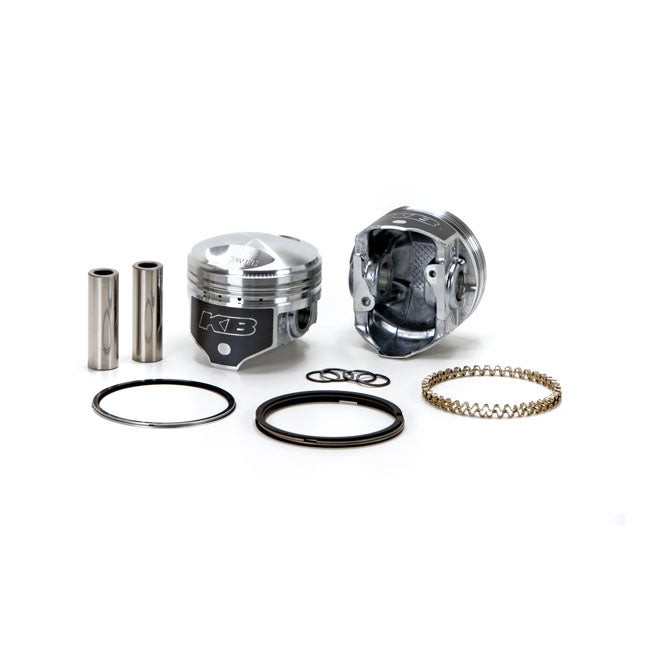

High compression pop-up piston set.
9.5:1 CR.
Piston weight 388gr.
Piston pin weight 97gr.
Head type: Dome
/ Dome -47cc. Compression height 1.285"
/ Bore 3.4980". Stroke 4.250". Rod length 7.440"
/ Cyl. length 5.330".
Comes with T5 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance.
See instructions.
Note: Around 30% of stock 1340cc Shovel cylinders may present a problem in combination with the location of some of the oil return holes since KB pistons have a wider piston ring pack for better piston stability in the cylinder.
In these cases the oil return hole must be re-located (lowered) to avoid excessive oil consumption.
Fits: > 79-84 1340cc Shovel (NU)
9.5:1 CR.
Piston weight 388gr.
Piston pin weight 97gr.
Head type: Dome
/ Dome -47cc. Compression height 1.285"
/ Bore 3.4980". Stroke 4.250". Rod length 7.440"
/ Cyl. length 5.330".
Comes with T5 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance.
See instructions.
Note: Around 30% of stock 1340cc Shovel cylinders may present a problem in combination with the location of some of the oil return holes since KB pistons have a wider piston ring pack for better piston stability in the cylinder.
In these cases the oil return hole must be re-located (lowered) to avoid excessive oil consumption.
Fits: > 79-84 1340cc Shovel (NU)
