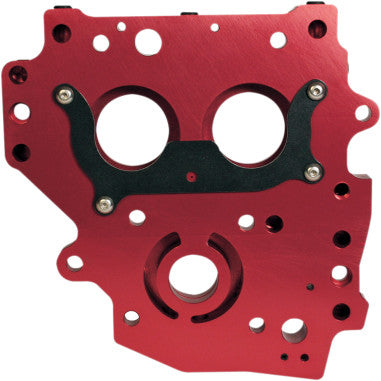

HIGH FLOW CAMPLATES FOR TWIN CAM FOR HARLEY-DAVIDSON

FEULING OIL PUMP CORP. HIGH FLOW CAMPLATES FOR TWIN CAM FOR HARLEY-DAVIDSON High Flow Cam Support Plate Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages

Camplate matches the oil portholes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine

25-35 degree cooler engine temperatures and 20-30 degree cooler oil temperatures

Made from 7075 billet aluminum which is 50% harder and stronger than the factory, SE® and other aftermarket camplates

The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings

Camplates are pressure tested and pressure relief valve is seated, sealed and set to pop off at 55-60 psi

When matched with the Feuling® Race Series oil pump rear wheel power gains of 3 Horsepower and 4 ft/lbs of Torque can be achieved

For use ONLY with the Feuling® oil pumps

Camplates for 99-06 Twin Cam (except 06 Dyna) have tighter cam bearing bore tolerances for improved press fit

Bearing and retainer plate hardware is included

Camplates for 07-17 Twin Cam (and 06 Dyna) have tighter cam journal tolerance for improved cam fitment

Added cam journal oil groove for cold startup protection and increased cam journal lubrication

Added oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear

Made in the U.S.A.

HIGH FLOW CAMPLATES FOR TWIN CAM
